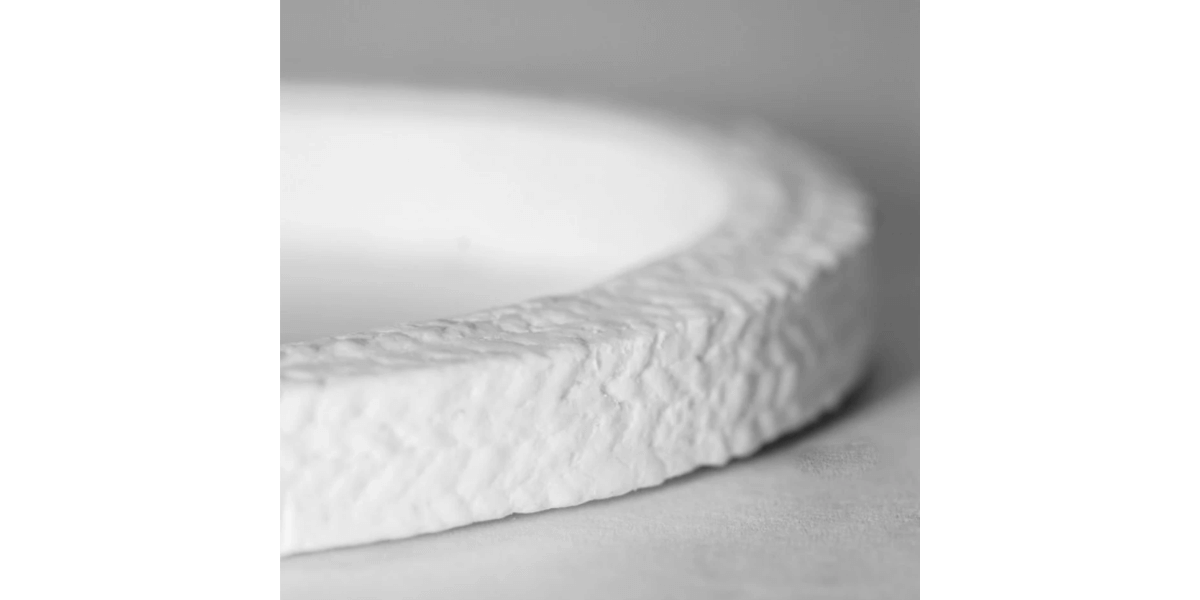

APG’s Style 1173 pump packing is saturated and sealed after braiding with PTFE (Teflon) particles which provides a greater degree of chemical inertness, lower coefficient of friction, and prevents penetration of chemical fluids. To assure good break-in characteristics, a light oil is applied. Style 1173 is recommended for operating temperatures up to 500°F / 260°C and shaft speeds up to 1850 feet per minute in caustics, mild acids, difficult chemicals, oils, and general chemical plant applications in general service, rotating and reciprocating pumps and agitators.
Learn More About Pump Packing →
Operating Conditions
Temperature: 500ºF / 260ºC
Shaft Speeds: 1850 fpm
pH Range: 0-11
Equipment
General service on rotary and reciprocating pumps, agitators.
Recommended For
Caustics, mild acids, difficult chemicals, air, gases, solvents, oils, and general chemical plant applications.
Treatment
A surface coating of PTFE is applied after braiding with a high-temperature synthetic lubricant.
Available in:
1lb, 5lb, 10lb boxes
The table below helps identify the poundage box need with the approximate length of packing inside.
