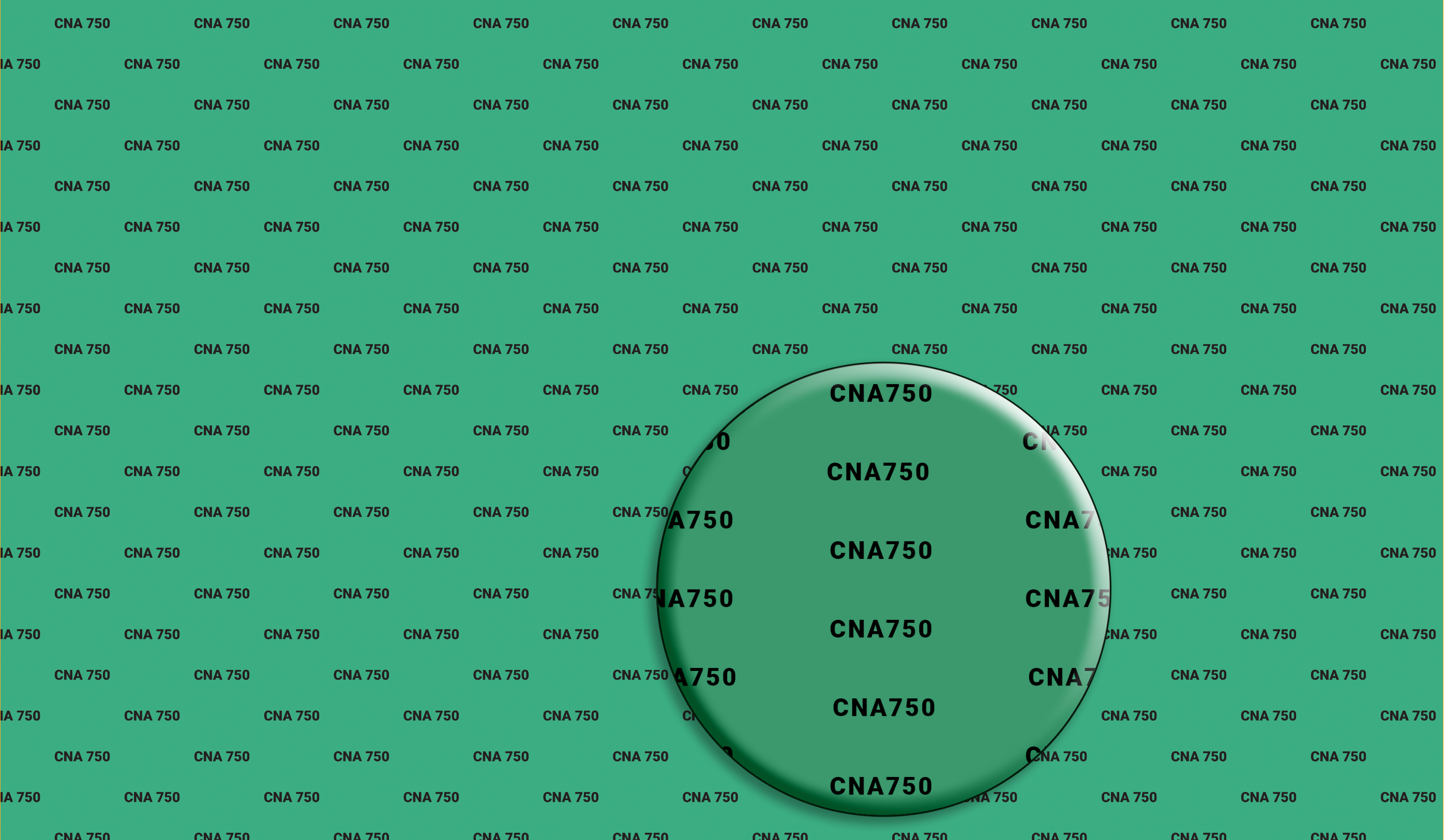

APG’s CNA750 - Compressed Non-Asbestos Sheets with Nitrile Binder is a general service compressed non-asbestos gasket material with a wide range of application potential. Use it in general applications such as liquid and gas service. This calendered sheet is manufactured with quality fibers, fillers with a nitrile binder (NBR).
Benefits & Features
Features
-
Temperature Range: -40℉ to 400℉
-
Nitrile (NBR) Binder
Characteristics
-
Excellent sealability
-
Good chemical resistance
-
Good compressibility and recovery
- Good Hot Compression Results
Product Specifications
Typical Values Refer to 1/16'' Thick Material Unless Noted
| Compressibility ASTM F36J | 9 - 19 % |
| Recovery ASTM F36J | > 40 % |
| Ignition Loss DIN 52911 | < 32 % |
| KLINGER Hot Compression Test | |
| 1 Thickness Decrease 73°F (23°C) | 1 14 % |
| 2 Thickness Decrease 392° F (200°C) | 2 19 % |
| Thickness Increase ASTM F146 after immersion in | |
| 1 ASTM Oil 3, 5h/300°F (149°C) | 1 8 % |
| 2 ASTM Fuel B, 5h/73°F (23°C) | 2 8 % |
| Weight Increase ASTM F146 after immersion in | |
| 1 ASTM Oil 3, 5h/300°F (149°C) | 1 17 % |
| 2 ASTM Fuel B, 5h/73°F (23°C) | 2 17 % |
| Density ASTM F1315 | 93 - 106 lb/ft3 |
| Color | Green |
