Military-Spec Ever-Tite Couplings
For Liquid Transfer Applications
Built for Field Durability. A‑A‑59326 Compliant.
Built for liquid transfer where fit, interchangeability, and field durability matter. Available in aluminum, stainless steel, and brass, with A-A-59326 compliant configurations, custom anodized finishes, and application review from APG's coupling sales team.
Request Application Review & Quote
Built for Spec-Driven Fit
A-A-59326 Compliant Camlock Couplings
When you source by specification, fit comes first. Ever-Tite military-spec camlock couplings are available in configurations that comply with A-A-59326 standard requirements and are built to be compatible with legacy MIL-C-27487 applications. Buyers searching by either spec can confirm compatibility and source with confidence.
Compliant
Complies with A-A-59326
standard requirements
Compatible
Compatible with legacy MIL-
C-27487 applications
Interchangeable
Designed for fit and interchangeability
in spec-driven applications
A-A-59326 // MIL-C-27487
A-A-59326 is the current U.S. Commercial Item Description for quick-disconnect, cam-locking coupling halves and fittings used in fuel and water handling. It superseded MIL-C-27487, though many buyers still search by the older spec. Ever-Tite couplings are designed for fit and interchangeability in these systems.
APG Ever-Tite couplings also comply with the following standards (Please ask for details):
- ASTN F1122-22 Standard Specification for Quick Disconnect Couplings
- DIN EN 14420-7 Hose Fittings with Cam locking couplings
Need to confirm
fit for your spec?
Military-Spec Ever-Tite Camlock Couplings
The Basic 8 Types
APG offers military-spec Ever-Tite camlock couplings across the Basic 8 types: Type I, Type II, Type III, Type V, Type VI, Type VII, Type IX, and Type X. For military and field-based liquid transfer, Type II, Type VI, Type IX, and Type X are most commonly specified, with 4" and 6" sizes frequently requested for higher-volume fuel and water lines.

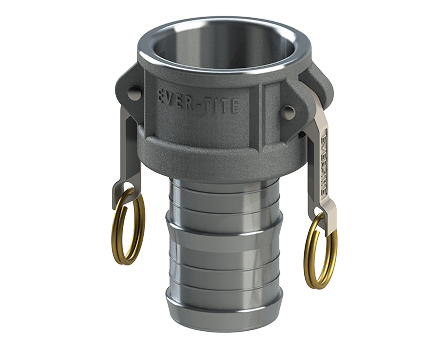

Type VI
Coupler x hose shank
Commercial Part C

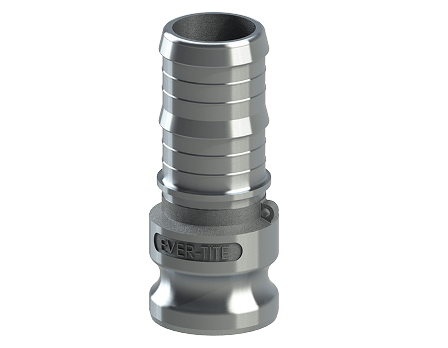

Type II
Adapter x hose shank
Commercial Part E

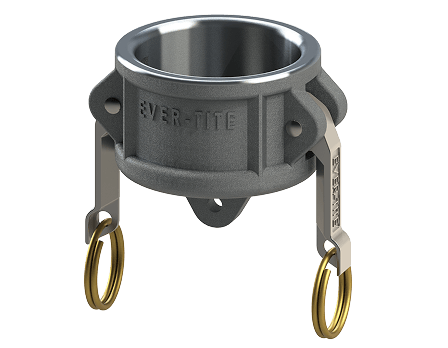

Type IX
Protects & seals adapter ends
Commercial Part DC (Dust Cap)

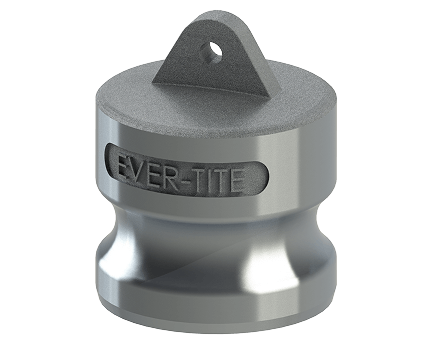

Type X
Protects & seals coupler ends
Commercial Part DP (Dust Plug)
Beyond the Basic 8
Adjacent & Custom Configurations

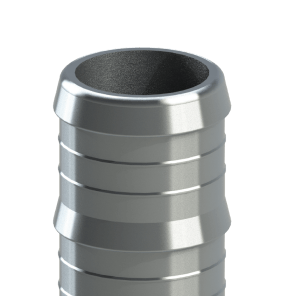

Aluminum
Type II shown

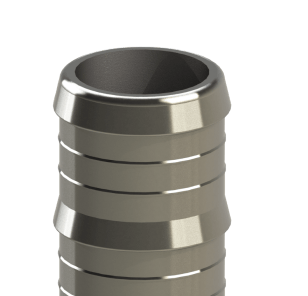

Stainless steel
Type II shown

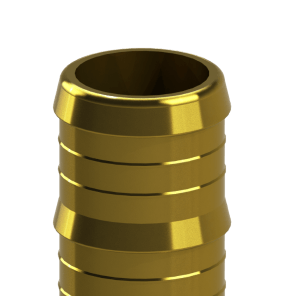

Brass
Type II shown
The Basic 8 is core for this line, but APG's military-spec catalog goes further. Adjacent configurations include reducers, increasers, spool adapters, spool couplers, flange cam & groove fittings, and angle-Type III fittings, all designed to interconnect with Ever-Tite Basic 8 couplings.
When an off-the-shelf configuration isn't the right fit, APG also offers custom engineering and manufacturing for any fluid transfer application that interconnects with our military-spec products. Share your system requirements and our coupling sales team will work through type, size, material, finish, and connection points with you.
Ask About Military-Spec Couplings
Aluminum
Type II shown
Stainless steel
Type II shown
Brass
Type II shown
Available Sizes
Sizes include 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", and 6".
4" and 6" are featured for higher-volume transfer. Confirm additional sizes and configurations with APG's coupling sales team.
Available Materials
Aluminum:
356-T6 aluminum
Stainless steel:
316 stainless steel
Brass
Protection where it matters

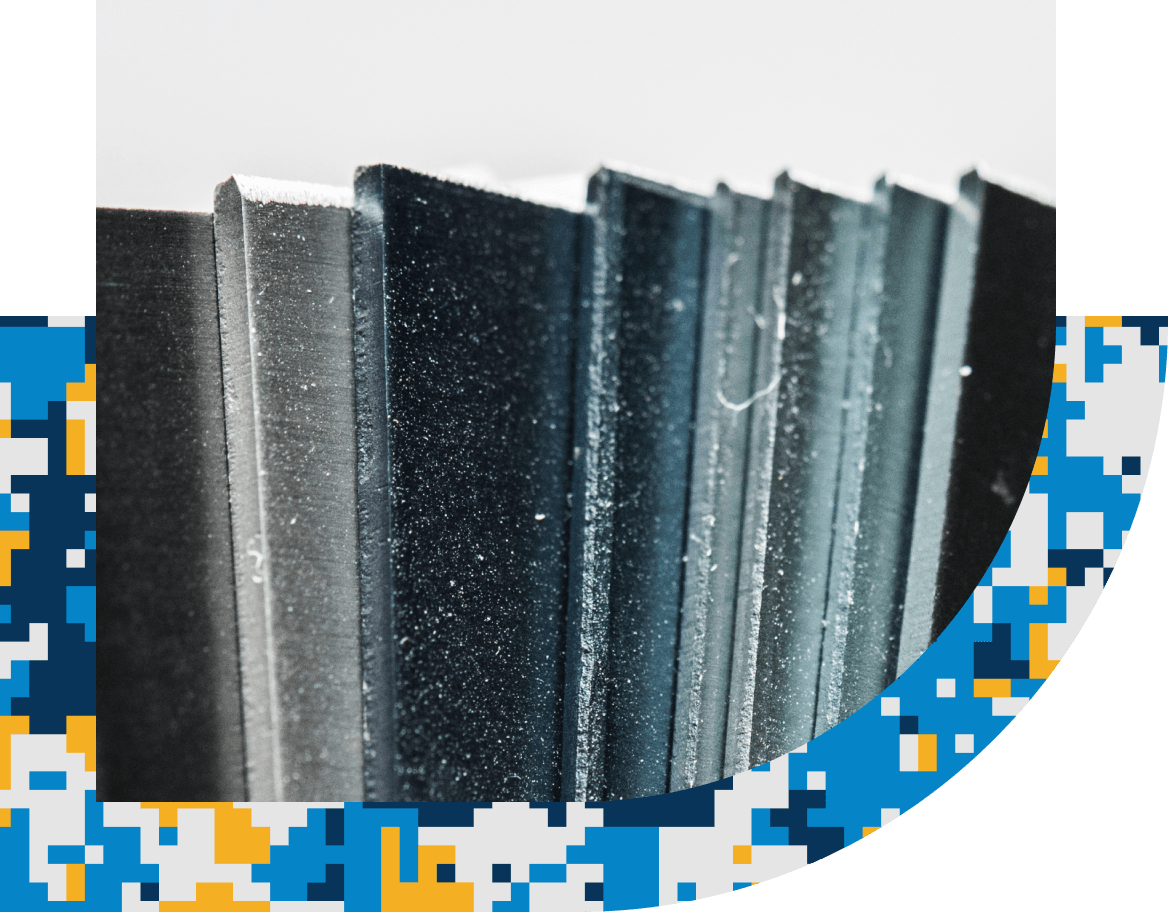

Custom Anodizing for Field and Industrial Environments
Anodizing strengthens the surface of aluminum parts with a protective oxide layer. For field and industrial liquid transfer, it improves corrosion resistance, abrasion resistance, and durability, and lets components be color-coded for fast visual identification.
Why it matters
For military, defense, and field-based liquid transfer, custom anodizing supports:
- Better durability in demanding environments
- Improved corrosion resistance
- Improved abrasion resistance
- Easier visual identification
- Color coding by application, fluid type, equipment group, or environment
Anodizing Coats
Standard vs. Hard Coat
Standard anodizing of aluminum parts provides improved abrasion and wear resistance through its hard coating, as specified for military applications. For increased abrasion and wear resistance through an even thicker coating, we offer Hard-coat anodizing.
Standard anodizing to specification MIL-A-8625/MIL-PRF-8625/SAE AMS-A-8625 Type II meeting the requirements of A-A-59326.
Hard-coat anodizing to specification MIL-A-8625/MIL-PRF-8625/SAE AMS-A-8625 Type III.
Protective Finishes
Available Anodizing Colors
Anodizing is available across all promoted coupling types and sizes. Clear and tan anodized are the standard colors, while black and olive drab are by request, in both standard and hard coat finishes.

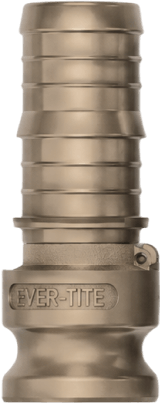

Tan

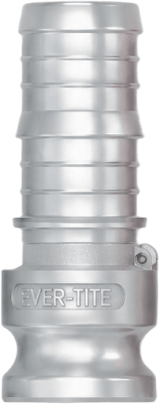

Clear

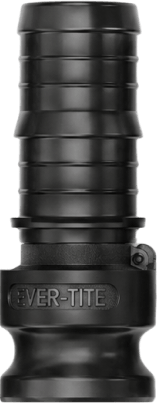

Black

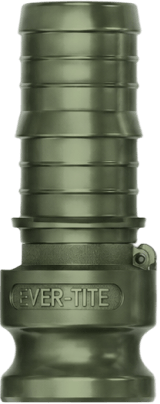

Olive Drab

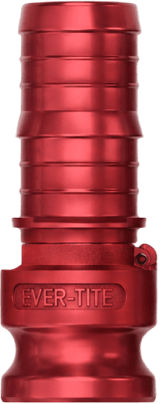

Red

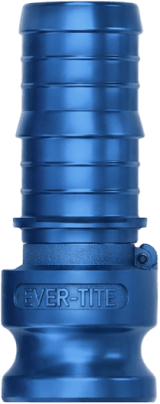

Blue
Application Support
Built for
Liquid Transfer Applications

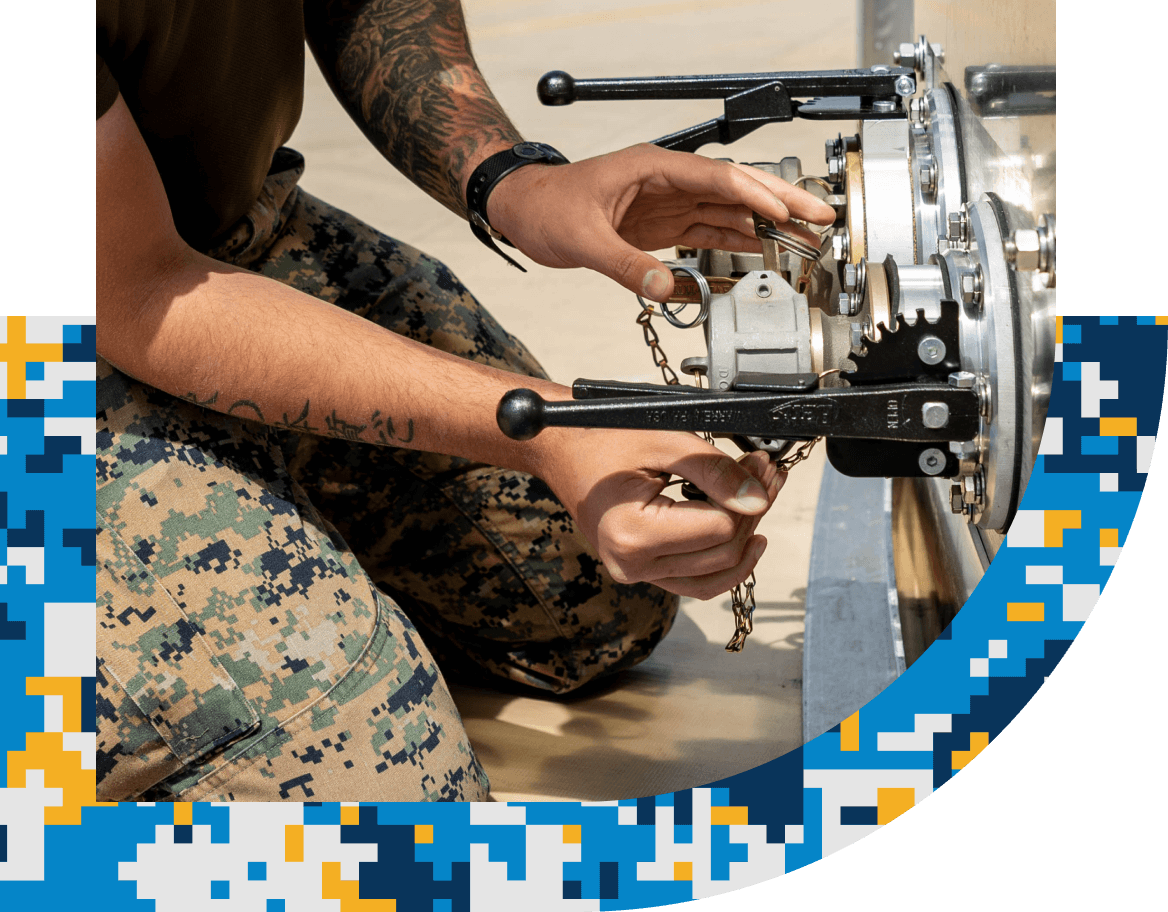

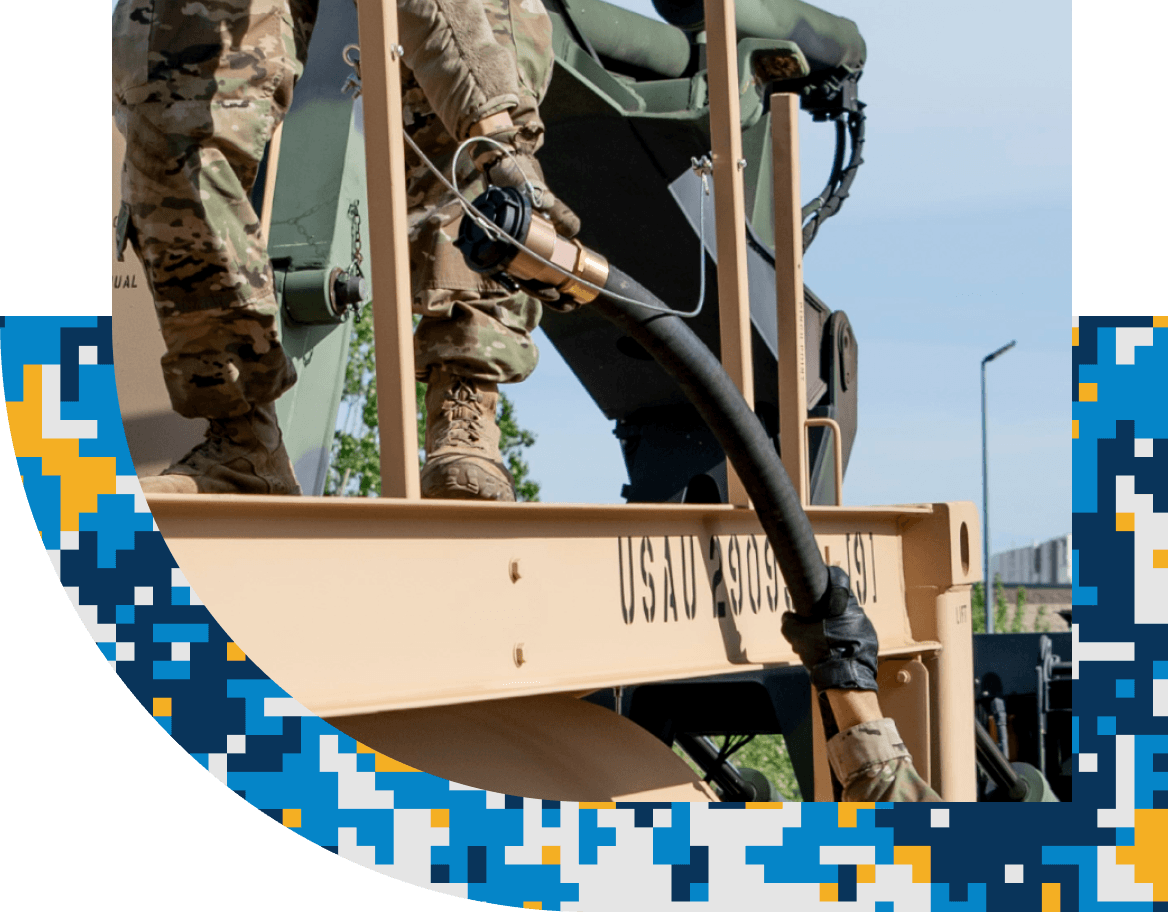

Ever-Tite couplings support a wide range of liquid transfer systems, led by fuel and water. From mobile fueling systems to field water systems and temporary transfer lines, APG helps you match the right coupling type, material, and finish to your environment.
For best performance, consult APG for application compatibility based on fluid type, pressure, temperature, material selection, and operating environment.
Fuel
transfer
Water transfer (potable & non-potable)
Diesel
transfer
Jet fuel
transfer
Chemical
transfer
Hydraulic fluid transfer
Deicing fluid transfer
Temporary transfer lines
Mobile fueling systems
Field water systems
Tank and container connections
General industrial liquid handling
Made & Shipped from Knoxville
Design, Assembly & Finishing Done In‑house
All assembly, finishing, inspection, and shipment are handled from APG's Knoxville operation, with select components manufactured on-site. Our coupling sales team has direct visibility into your order, from finish selection through final inspection, so you get the right configuration and a reliable hand-off.
- In-house design, assembly and finishing
- Inspection before shipment
- Application support from APG's coupling sales team
- Expert custom design and fabrication for any application
Get exactly what you need
Send Us Your Specifications
APG's coupling sales team reviews your application before quoting, confirming the right coupling type, size, material, finish, and compatibility. Submit your requirement and we'll follow up with application review and quote support.
Request Application Review & Quote
Frequently Asked Questions
Common Military-Spec Coupling Topics
A-A-59326 is a U.S. Federal Specification for quick-disconnect, cam and groove (camlock) coupling fittings used in fuel and water handling equipment. It is the current spec buyers commonly reference for military-style camlock coupling requirements.
A-A-59326 is not the same specification, but it superseded the older MIL-C-27487 military specification. Many buyers still search for MIL-C-27487 when sourcing compatible camlock couplings.
Ever-Tite couplings are available in configurations that comply with A-A-59326 requirements and are built to be compatible with legacy MIL-C-27487 applications. Contact APG to confirm the correct type, size, material, and finish for your application.
APG offers military-spec Ever-Tite camlock couplings across the Basic 8 and other configurations, including reducers, increasers, spool adapters, spool couplers, flange cam & groove fittings, and angle-type fittings.
APG's military-spec couplings come in many sizes including: 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2, 3, 4, 6-inch sizes. Additional size availability should be confirmed with APG's coupling sales team.
Ever-Tite military-spec couplings are available in aluminum, stainless steel, and brass. Aluminum options use 356-T6 aluminum, and stainless-steel options use 316 stainless steel.
Anodizing strengthens the aluminum surface by creating a protective oxide layer that helps improve corrosion resistance, wear resistance, and durability. This is useful for liquid transfer couplings used in field, fleet, and industrial environments.
APG offers aluminum anodizing options in sand brown (30277), desert tan (33446),green (34094), black (37030), olive drab (34087), USMC green (34052), clear, red, and blue. These colors can help with identification, application separation, or field-use visibility requirements. If you'd like a preview of the color codes we have listed in our form below, you can search for the last 5 digits of the color code here.
Standard anodizing provides a thinner protective finish, while hard coat anodizing creates a thicker, harder surface layer for improved abrasion and wear resistance. Hard coat is typically used when durability is more important than decorative finish.
Yes, APG supports Ever-Tite coupling applications for fuel, water, and other liquid transfer systems. For best performance, APG should review the fluid type, pressure, temperature, material selection, and operating environment before quoting.
Yes, APG's coupling sales team can review your application requirements before providing a quote. This helps confirm the correct coupling type, size, material, finish, and compatibility needs.
Yes, the inquiry form can include an attachment option for drawings, spreadsheets, product lists, or other supporting documents. This helps APG review your requirement more accurately before follow-up.
